WordPress to LaTeX with Pandoc and J: Using TeXfrWpxml.ijs (Part 3)

Click for an updated PDF version of this post.

WordPress to LaTeX
WordPress to LaTeX

In this post I will describe how to use the J script TeXfrWpxml.ijs to generate LaTeX source from WordPress export XML.  I am assuming you have worked through (Part 1) and (Part 2) and have:

  1. Successfully installed and tested Pandoc.
  2. Installed and tested a version of J.
  3. Set up appropriate directories (Part 2).
  4. Know how to use LaTeX.

Item #4 is a big if.  Inexperienced LaTeX users will probably not enjoy a lot of success with this procedure as the source generated by TeXfrWpxml.ijs requires manual edits to produce good results.  However, if you’re not a LaTeX guru, do not get discouraged. It’s not difficult to create blog documents like bm.pdf.

Step 1: download WordPress Export XML

How to download WordPress export XML is described here.  Basically you go to your blog’s dashboard, select Tools, choose Export  and select the All content option.

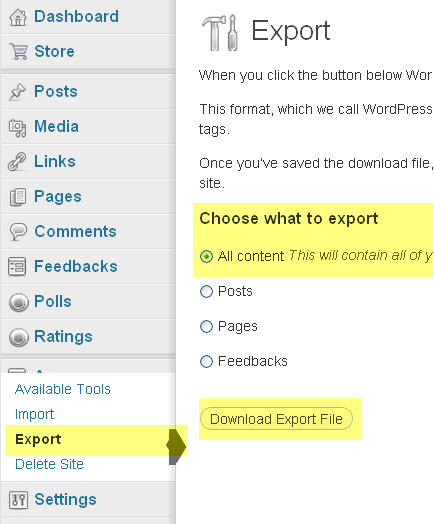

Tools > Export > All Content
Tools > Export > All Content

When you press the Download Export File  button your browser will download a single XML file that contains all your posts and comments. Remember where you save this file. I put my export XML here.


Step 2: download TeXfrWpxml.ijs

Download TeXfrWpxml.ijs and remember where you save it.  I put this script here.


Step 3: start J and load TeXfrWpxml.ijs

TeXfrWpxml.ijs was generated from JOD dictionaries. With JOD it’s easy to capture root word dependencies and produce complete standalone scripts. TeXfrWpxml.ijs needs only the standard J load profile to run.  It does not require any libraries or external references and should run on all Windows and Linux versions of J after 6.01.  Loading this script is a simple matter of executing:

load 'c:/pd/blog/TeXfrWpxml.ijs'

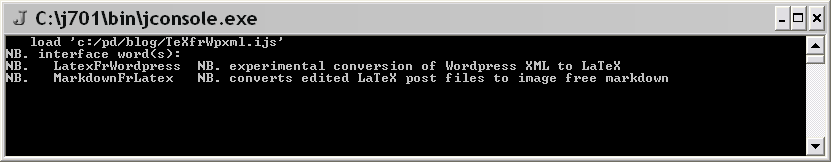

The following shows this script running in a J 7.01 console. The console is the most stripped down J runtime.

Step 4: review directories and necessary LaTeX files

The conversion script assumes proper directories are available up: see Part 2. The first time you run TeXfrWpxml.ijs it’s a good idea to check that the directories and files the script is expecting are the ones you want to process.  You can verify the settings by displaying TEXFRWPDIR, TEXINCLUSIONS, TEXROOTFILE and TEXPREAMBLE.


If all these directories and files exist go to step (5).

Step 5: make sure you are online

The first time you run the converter it will attempt to download all the images referenced in your blog. This is where wget.exe gets executed.  Obviously to download anything you must be connected to the Internet.

Step 6: run LatexFrWordpress

Run the verb LatexFrWordpress.  The monadic version of this verb takes a single argument: the complete path and file name of the export XML file you downloaded in step (1).

xml=: 'c:/pd/blog/wordpress/analyzethedatanotthedrivel.wordpress.xml'

LatexFrWordpress xml

As the verb runs you will see output like:

   LatexFrWordpress xml
What's In it for Facebook?
downloading: c:/pd/blog/wp2latex/inclusions/demotivational-posters-facebook-you.jpg
1 downloaded; 0 not downloaded; 0 skipped
Fake Programming
downloading: c:/pd/blog/wp2latex/inclusions/672169130_vajvn-M.png
1 downloaded; 0 not downloaded; 0 skipped
Laws or Suggestions
downloading: c:/pd/blog/wp2latex/inclusions/i-B5mfdRF-M.jpg
1 downloaded; 0 not downloaded; 0 skipped
Lens Lust

... many lines omitted ...

downloading: c:/pd/blog/wp2latex/inclusions/i-mNK4RHL-M.png
1 downloaded; 0 not downloaded; 0 skipped
WordPress to LaTeX with Pandoc and J: LaTeX Directories (Part 2)
0 downloaded; 0 not downloaded; 1 skipped

When the verb terminates you should have a directory c:/pd/blog/wp2latex full of *.tex files:  one file for each blog post. Now the hard work starts.

Step 7: editing LaTeX posts

The conversion from WordPress XML to LaTeX produces files that require manual edits. The more images, video, tables and other elements in your posts the more demanding these edits will become.  My blog has about one image per post.  Most of these images are wrapped by text. LaTeX has a mind of its own when it comes to floating figures and getting illustrations to behave requires far more parameter tweaking than it should. This is a longstanding weakness of LaTeX that pretty much everyone bitches about. My advice is start at the front of your document and work through it post by post. The files generated by LatexFrWordpress do not attempt to place figures for you but they do bolt in ready-made figure templates as comments that you can experiment with.  Each post file is also set up for separate LaTeX compilation. You don’t have to compile your entire blog to tweak one post. The one good thing about this edit step is once you have sorted out your old posts you do not have to revisit them unless you make major global document changes. The next time you run LatexFrWordpress it will only bring down new posts and images.

Step 8: compile your LaTeX blog

I use batch files and shell scripts to drive LaTeX compilations.  I processed my blog with this batch file.

echo off
rem process blog posting (bm.tex) root file
title Running Blog Master/LaTeX ...

rem first pass for aux file needed by bibtex
lualatex bm

rem generate/reset bbl file
bibtex bm
makeindex bm

rem resolve all internal references - may
rem comment out when debugging entire document
lualatex bm
lualatex bm

rem display pdf - point to prefered PDF reader
title Blog Master/LaTeX complete displaying PDF ...
"C:\Program Files\SumatraPDF\SumatraPDF.exe" bm.pdf

The presence of Unicode APL, see this post, forced me to use lualatex. I needed some very nonstandard APL fonts.  See bm.pdf — also available on the Download this Blog page — to judge the effectiveness of my edits. Producing nice figure laden typeset blog documents is work but, as I will describe in the next post, producing image free eBooks is a simple and far less laborious variation on this process.

12 thoughts on “WordPress to LaTeX with Pandoc and J: Using TeXfrWpxml.ijs (Part 3)

  1. John,
    I had read these posts earlier but thought that they were too complicated for my needs. However, now I think that not following something similar (I intend to use Makefiles instead of batch/bash files) is complicated. So, thanks for posting this workflow. It has helped me immensely.

    Also, I’d inquired about J in one of your posts (Open source Hilbert for Kindle) a couple of years ago and you’d advised me to join the J forums (which I did promptly and enjoy it immensely…to this day). So, thanks for all the good and useful advice.

  2. Thank you very much for your work! I have used your tutorial to download a few travel posts I would like to put together in a pdf, and now I am at a point of editing the .tex files – and I have got them with far less hassle than I thought!
    Thanks once again!

  3. Hi John,
    I found your blog while looking for tools to convert WordPress xml files to latex. I know latex quite well, but not at all xml. I tried many solutions, and yours is the only one that worked for me. So thanks a lot for that! Then I tried to understand why only WP articles were accounted for in the conversion, not the WP pages of my website (lacuisine.dkulcsar.fr). So I looked into TeXfrWpxml.ijs but it’s too difficult. Do you have any clue why it is so and how to fix that?
    Many thanks,

    1. Hi Caroline,

      Thanks for your note. The WordPress to LaTeX converter I put together only converts posts. I don’t convert other pages. On my blog the additional pages don’t follow a post pattern and the amount of material is limited so I didn’t bother converting them. This may not be true of others.

      Changing TeXfrWpxml.ijs will not work for you but the source XML document contains the other pages as well. You can find them with a text editor and if your non-post pages are short like mine a manual conversion may be all you need. Good Luck.

  4. Could you message me with some pointers about how you made this blog site look this good, I would be appreciative.

    1. Most of the work is down by the theme. To get started I would browse the WordPress themes. Most of them come with fairly clear controls that let you set backgrounds, menus, fonts and so forth. The only manual interventions I do are placing figures and inserting the odd bit of HTML and LaTeX.

Comments are closed.
